Τόπος καταγωγής:
Κίνα
Μάρκα:
Kelong
Πιστοποίηση:
ISO9001 / IRIS
Αριθμό μοντέλου:
KL18
Μας ελάτε σε επαφή με
• Μικρή τριβή και χωρίς γλίστρα
• Μεγάλη διάρκεια ζωής
• Υψηλή αντοχή στην εκτόξευση
• Υψηλή ταχύτητα
• Σχοινιά ISO 7425-2

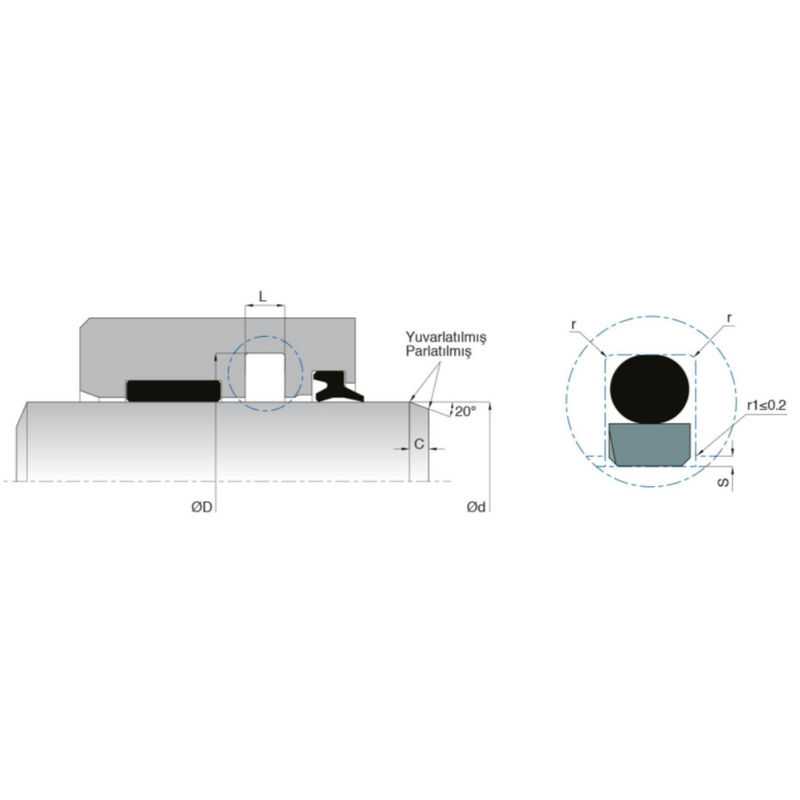

| d (f8) | D (H9) | L (+0,2/-0) | r | Γ | Ο-Ring | ΥΛΟΔΟΣ | |
| KL18-004 | 4 | 8.9 | 2.2 | 0.4 | 3 | 5.28x1.78 | ΠΤΦΕ |
| KL18-010 | 10 | 14.9 | 2.2 | 0.4 | 3 | 11.11x1.78 | ΠΤΦΕ |
| KL18-014 | 14 | 21.3 | 3.2 | 0.6 | 4.5 | 15.88x2.62 | ΠΤΦΕ |
| KL18-022 | 22 | 29.3 | 3.2 | 0.6 | 4.5 | 25.07x2.62 | ΠΤΦΕ |
| KL18-028 | 28 | 38.7 | 4.2 | 1 | 6 | 31.34x3.53 | ΠΤΦΕ |
| KL18-030 | 30 | 40.7 | 4.2 | 1 | 6 | 34.52x3.53 | ΠΤΦΕ |
| KL18-032 | 32 | 42.7 | 4.2 | 1 | 6 | 36.10x3.53 | ΠΤΦΕ |
| KL18-035 | 35 | 45.7 | 4.2 | 1 | 6 | 37.69x3.53 | ΠΤΦΕ |
| KL18-035/1 | 35 | 42.3 | 3.2 | 0.6 | 4.5 | 36.17x2.62 | ΠΤΦΕ |
| KL18-038 | 38 | 48.7 | 4.2 | 1 | 6 | 41.28x3.53 | ΠΤΦΕ |
| KL18-040 | 40 | 50.7 | 4.2 | 1 | 6 | 44.45x3.53 | ΠΤΦΕ |
| KL18-042/1 | 42 | 57.1 | 6.3 | 1.3 | 8 | 47x5.33 | ΠΤΦΕ |
| KL18-045 | 45 | 60.1 | 6.3 | 1.3 | 8 | 50.16x5.33 | ΠΤΦΕ |
| KL18-045/1 | 45 | 55.7 | 4.2 | 1 | 6 | 49.21x3.53 | ΠΤΦΕ |
| KL18-048 | 48 | 63.1 | 6.3 | 1.3 | 8 | 53.34x5.33 | ΠΤΦΕ |
| KL18-050 | 50 | 65.1 | 6.3 | 1.3 | 8 | 53.34x5.33 | ΠΤΦΕ |
| KL18-050/1 | 50 | 60.7 | 4.2 | 1 | 6 | 53.57x3.53 | ΠΤΦΕ |
| ΚΛ18-052 | 52 | 62.7 | 4.2 | 1 | 6 | 55.56x3.53 | ΠΤΦΕ |
| KL18-055/1 | 55 | 70.1 | 6.3 | 1.3 | 8 | 59.70x5.33 | ΠΤΦΕ |
| KL18-056 | 56 | 71.1 | 6.3 | 1.3 | 8 | 59.70x5.33 | ΠΤΦΕ |
| KL18-060 | 60 | 70.7 | 4.2 | 1 | 6 | 63.50x3.53 | ΠΤΦΕ |
| KL18-063 | 63 | 78.1 | 6.3 | 1.3 | 8 | 66.04x5.33 | ΠΤΦΕ |
| KL18-065 | 65 | 80.1 | 6.3 | 1.3 | 8 | 69.22x5.33 | ΠΤΦΕ |
| KL18-070 | 70 | 85.1 | 6.3 | 1.3 | 8 | 75.57x5.33 | ΠΤΦΕ |
| KL18-075 | 75 | 90.1 | 6.3 | 1.3 | 8 | 79.77x5.33 | ΠΤΦΕ |
| KL18-080/1 | 80 | 95.1 | 6.3 | 1.3 | 8 | 85.09x5.33 | ΠΤΦΕ |
| KL18-090/1 | 90 | 105.1 | 6.3 | 1.3 | 8 | 94.62x5.33 | ΠΤΦΕ |
| KL18-100 | 100 | 115.1 | 6.3 | 1.3 | 8 | 107.32x5.33 | ΠΤΦΕ |
| KL18-110 | 110 | 125.1 | 6.3 | 1.3 | 8 | 116.84x5.33 | ΠΤΦΕ |
| KL18-125 | 125 | 140.1 | 6.3 | 1.3 | 8 | 126.57x5.33 | ΠΤΦΕ |
| KL18-140 | 140 | 155.1 | 6.3 | 1.3 | 8 | 146.05x5.33 | ΠΤΦΕ |
| KL18-150 | 150 | 165.1 | 6.3 | 1.3 | 8 | 151.77x5.33 | ΠΤΦΕ |
| KL18-160 | 160 | 175.1 | 6.3 | 1.3 | 8 | 170.82x5.33 | ΠΤΦΕ |
| KL18-180 | 180 | 200.5 | 8.1 | 1.8 | 10.5 | 187.3x6.99 | ΠΤΦΕ |
| KL18-180/1 | 180 | 195.1 | 6.3 | 1.3 | 8 | 185.40x5.33 | ΠΤΦΕ |
| KL18-190 | 190 | 205.1 | 6.3 | 1.3 | 8 | 196.22x5.33 | ΠΤΦΕ |
| KL18-200 | 200 | 220.5 | 8.1 | 1.8 | 10.5 | 208.92x6.99 | ΠΤΦΕ |
| KL18-220 | 220 | 235.1 | 6.3 | 1.8 | 10.5 | 221.62x5.33 | ΠΤΦΕ |
| KL18-220/1 | 220 | 240.5 | 8.1 | 1.8 | 10.5 | 227.97x6.99 | ΠΤΦΕ |
| KL18-250 | 250 | 270.5 | 8.1 | 1.8 | 10.5 | 253.57x6.99 | ΠΤΦΕ |
| KL18-290 | 290 | 314 | 8.1 | 1.8 | 10.5 | 304.17x6.99 | ΠΤΦΕ |
| KL18-300 | 300 | 324 | 8.1 | 1.8 | 10.5 | 304.17x6.99 | ΠΤΦΕ |
| KL18-310 | 310 | 334 | 8.1 | 1.8 | 10.5 | 316.87x6.99 | ΠΤΦΕ |
| KL18-320 | 320 | 344 | 8.1 | 1.8 | 10.5 | 329.57x6.99 | ΠΤΦΕ |
| KL18-350 | 350 | 370.5 | 8.1 | 1.8 | 10.5 | 354.9x6.99 | ΠΤΦΕ |
| KL18-350/1 | 350 | 374 | 8.1 | 1.8 | 10.5 | 354.9x6.99 | ΠΤΦΕ |
| KL18-360 | 360 | 384 | 8.1 | 1.8 | 10.5 | 367.67x6.99 | ΠΤΦΕ |
| KL18-370 | 370 | 394 | 8.1 | 1.8 | 10.5 | 380.37x6.99 | ΠΤΦΕ |
